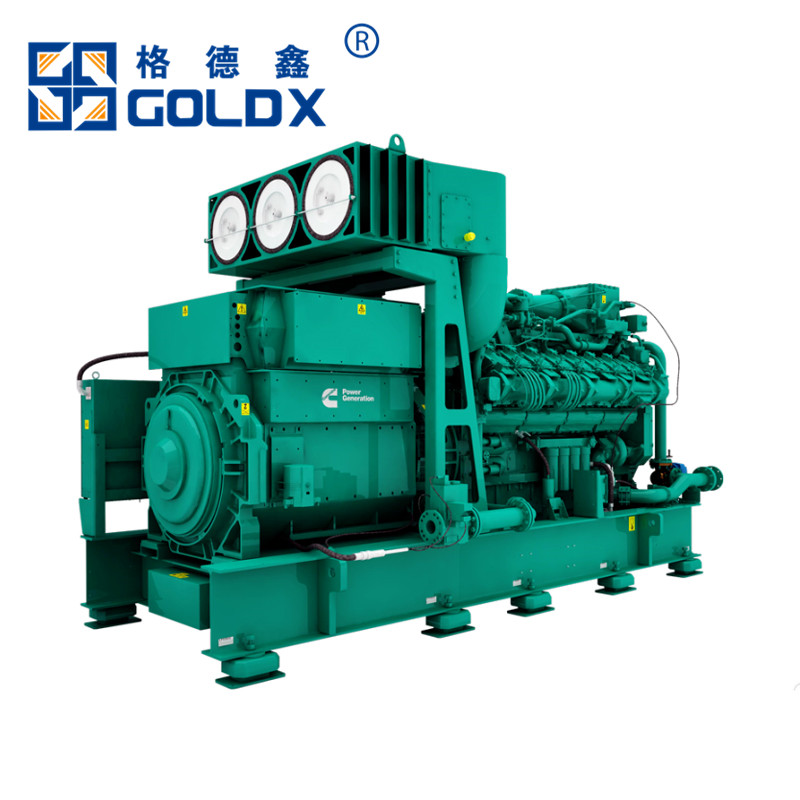

Gas Generator Set

We are in strict accordance with the ISO9001 quality management system organization of production, gas generator set is a kind of liquefied gas, natural gas and other combustible gas as combustion, instead of gasoline, diesel as the engine power of a new, efficient new energy generator. Gas generators have a wide output power range, reliable start and operation, good power generation quality, light weight, small size, simple maintenance, low frequency noise and other advantages, generally they have the following four advantages: First, good power generation quality Because the generator only rotating motion when working, the electric modulation reaction speed is fast, the work is particularly smooth, the generator output voltage and frequency accuracy is high, the fluctuation is small, in the sudden air reduction of 50% and 75% load, the unit is very stable. The electrical performance index is better than that of diesel generator set. Second, good startup performance, high startup success rate The time from successful cold start to full load is only 30 seconds, while the international regulations stipulate that the diesel generator is loaded for 3 minutes after successful start. The gas turbine generator set can guarantee the success rate of start-up in any ambient temperature and climate. Third, Low noise and low vibration Because the gas turbine is in the state of high-speed rotation, its vibration is very small, and the low frequency noise is better than that of the diesel generator set. The combustible gas used is a clean and cheap energy source Such as: gas gas, straw gas, biogas, etc., with their fuel generator set not only reliable operation, low cost, and can turn waste into treasure, will not produce pollution.

Main parameters of gas generator set:

Gas generator set
Genset Model	output power		Current (A)	Diesel engine type	Number of cylinders	Cylinder diameter x stroke（mm）	Gas displacement(L)	Oil capacityL	Dimension L×W×H(mm)	Net WeightKg
Genset Model	KW	KVA	Current (A)	Diesel engine type	Number of cylinders	Cylinder diameter x stroke（mm）	Gas displacement(L)	Oil capacityL	Dimension L×W×H(mm)	Net WeightKg
GDRQ30GF	30	37.5	54	chaochai CY4102	4	102×118	3.856	7	2000×750×1300	760
GDRQ-50GF	50	62.5	90	Huafeng HF6105Q	6	105×115	3.6	15	2000×750×1300	850
GDRQ-80GF	80	100	144	Huafeng HF6105ZQ	6	105×115	3.6	15	2200×850×1500	1060
GDRQ-100GF	100	125	180	Weichai Steyr P10	6	126×155	11.6	15	2350×900×1650	1400
GDRQ-120GF	120	150	216	Weichai Steyr P10	6	126×155	11.6	15	2400×900×1450	1700
GDRQ-150GF	150	187.5	270	Weichai Steyr P10	6	126×155	11.6	15	2700×1000×1600	2000
GDRQ-220GF	220	275	360	Weichai Steyr P12	6	126×155	11.6	15	3300×980×1900	2500
GDRQ-100GF	100	125	180	Shangchai SC9DT210D2	6	114×144	8.82	24	2600×900×1600	2200
GDRQ-150GF	150	187.5	270	Shangchai SC13GT260D2	6	135×150	12.88	34.4	2800×1500×2100	2500

Cummins gas generator set
Genset Model	output power		Current (A)	Diesel engine type	Number of cylinders	Cylinder diameter x stroke（mm）	Gas displacement(L)	Oil capacityL	Dimension L×W×H(mm)	Net WeightKg
Genset Model	KW	KVA	Current (A)	Diesel engine type	Number of cylinders	Cylinder diameter x stroke（mm）	Gas displacement(L)	Oil capacityL	Dimension L×W×H(mm)	Net WeightKg
GDRQ-30	30	37.5	54	4B	4L	102×120	3.9	11	2000×750×1300	760
GDRQ-40	40	50	72	4B	4L	102×120	3.9	11	2000×750×1300	760
GDRQ-50	50	62.5	90	6B	4L	102×120	3.9	11	2000×750×1300	850
GDRQ-60	60	75	108	6BT	6L	102×120	5.9	17	2200×850×1500	1040
GDRQ-80	80	100	144	6BT	6L	102×120	5.9	17	2200×850×1500	1060
GDRQ-90	90	112.5	162	6BT	6L	102×120	5.9	17	2300×850×1500	1200
GDRQ-100	100	120	180	6CT	6L	114×135	8.3	17	2350×900×1650	1400
GDRQ-120	120	150	216	6CT	6L	114×135	8.3	24	2400×900×1450	1700
GDRQ-130	130	162.5	234	6CT	6L	114×135	8.3	24	2500×960×1550	1900
GDRQ-150	150	187.5	270	6LT	6L	114×135	8.9	36	2700×1000×1600	2000
GDRQ-160	160	200	288	6LT	6L	125×147	11	40	2850×1060×1760	2320
GDRQ-180	180	225	324	6LT8.9	6L	125×147	14	38	3000×1060×1900	2450
GDRQ-200	200	312.5	360	NT855	6L	125×147	14	38	3300×980×1900	2500
GDRQ-220	220	275	396	NT855	6L	125×147	11	40	3000×980×1600	2450
GDRQ-250	250	312.5	450	NT855	6L	140×152	14	38	3300×980×1760	2500
GDRQ-280	280	350	504	NT855	6L	140×152	14	38	3300×980×1760	2600
GDRQ-300	300	375	540	KT19	6L	140×152	14	38	3300×980×1760	3050
GDRQ-350	350	437.5	631	KT19	6L	140×152	14	38	3300×1100×1850	3180
GDRQ-400	400	500	721	KT19	6L	159×159	18.9	50	3500×1300×1970	3500
GDRQ-440	440	550	792	KT19	6L	159×159	18.9	50	3500×1300×1970	3700
GDRQ-500	500	625	902	KT38	6L	159×159	18.9	50	4000×1500×2000	4400
GDRQ-600	600	750	1082	KT38	12V	159×159	37.8	135	4400×1900×2450	7500
GDRQ-700	700	875	1262	KT38	12V	159×159	37.8	135	4500×1900×2450	7600
GDRQ-750	750	937.5	1350	KT38	12V	159×159	37.8	135	4500×1900×2450	7850
GDRQ-800	800	1000	1440	KT50	12V	159×159	37.8	135	4500×1900×2450	7850
GDRQ-980	980	1225	1764	KT50	12V	159×159	37.8	135	4500×1900×2450	7850
GDRQ-1100	1100	1375	1984	KT50	16V	159×159	50.3	177	5300×2200×2600	10300
