Specification
| Unit Type | Unit PowerKW | Diesel engine type | Output power | Number of cylinders | Cylinder diameter/Stroke mm*mm | Gas Displacement | Speed Adjustment Mode | Speed/Minute | Unit Diameter L*W*H mm | Unit Weight KG | |
| Main | Spare | ||||||||||
| GD150GF | 137 | 150 | KP8D220D2 | 171KW | 6 | 114*135 | 8.27 | Electric | 1500 | 2450*800*1350 | 1900 |
| GD200GF | 165 | 200 | KP8D280D2 | 206KW | 6 | 114*135 | 8.27 | Electric | 1500 | 2450*850*1350 | 2000 |
| GD200GF | 180 | 200 | KP9D310D2 | 227KW | 6 | 114*135 | 8.27 | Electric | 1500 | 2500*850*1400 | 2100 |
| GD200GF | 220 | 240 | KP9D340D2 | 263KW | 6 | 114*144 | 8.82 | Electric | 1500 | 2550*950*1500 | 2300 |
| GD250GF | 250 | 280 | KP310 | 316KW | 6 | 135*155 | 13.3 | Electric | 1500 | 2900*1000*1750 | 2500 |
| GD300GF | 300 | 330 | KP350 | 365KW | 6 | 135*160 | 14.5 | Electric | 1500 | 3000*1100*1750 | 2800 |
| GD350GF | 350 | 380 | KP425 | 425KW | 6 | 135*165 | 14.9 | Electric | 1500 | 3050*1100*1800 | 3000 |
| GD360GF | 360 | 400 | KP441 | 441KW | 6 | 135*165 | 14.9 | Electric | 1500 | 3050*1100*1800 | 3100 |
| GD400GF | 400 | 440 | KP475 | 475KW | 6 | 135*165 | 14.9 | Electric | 1500 | 3050*1100*1800 | 3100 |
| GD450GF | 400 | 450 | KP515 | 515KW | 6 | 138*170 | 16.2 | Electric | 1500 | 3100*1100*1800 | 3200 |
| GD500GF | 450 | 500 | KP535 | 535KW | 6 | 138*170 | 16.2 | Electric | 1500 | 3100*1100*1800 | 3200 |
| GD320GF | 320 | 360 | KPV420 | 420KW | 12 | 135*150 | 25.8 | Electric | 1500 | 3400*1300*1900 | 3500 |
| GD380GF | 380 | 420 | KPV450 | 450KW | 12 | 135*150 | 25.8 | Electric | 1500 | 3400*1350*1900 | 3500 |
| GD400GF | 400 | 440 | KPV510 | 510KW | 12 | 135*150 | 25.8 | Electric | 1500 | 3400*1360*1900 | 3600 |
| GD450GF | 450 | 500 | KPV550 | 550KW | 12 | 135*150 | 25.8 | Electric | 1500 | 3400*1360*1900 | 3700 |
| GD500GF | 500 | 550 | KPV610 | 610KW | 12 | 135*155 | 26.6 | Electric | 1500 | 3400*1500*2000 | 3800 |
| GDG520GF | 520 | 572 | KPV630 | 630KW | 12 | 135*155 | 28.36 | Electric | 1500 | 3400*1500*2000 | 3800 |
| GD600GF | 550 | 600 | KPV660 | 660KW | 12 | 135*158 | 28.36 | Electric | 1500 | 3400*1550*2100 | 3950 |
| GD700GF | 600 | 700 | KPV720 | 720KW | 12 | 135*158 | 28.36 | Electric | 1500 | 3450*1600*2150 | 4000 |
| GD700GF | 630 | 700 | KPV780 | 780KW | 12 | 135*158 | 28.8 | Electric | 1500 | 3500*1700*2150 | 4400 |
| GD800GF | 700 | 800 | KPV840 | 840KW | 12 | 138*158 | 28.8 | Electric | 1500 | 3600*1700*2200 | 4500 |
| GD800GF | 800 | 850 | KPV936 | 936KW | 12 | 138*165 | 32.7 | Electric | 1500 | 3600*1720*2200 | 4600 |
| GD800GF | 800 | 880 | KPV970 | 970KW | 12 | 138*165 | 32.7 | Electric | 1500 | 3700*1750*2250 | 5000 |
| GD950GF | 860 | 950 | KPV1100 | 1030KW | 12 | 138*168 | 33.8 | Electric | 1500 | 4000*1780*2300 | 5300 |
| GD1000GF | 1000 | 1100 | KPV1200 | 1160KW | 12 | 138*165 | 32.7 | Electric | 1500 | 4000*1780*2350 | 5500 |
| GD1200GF | 1100 | 1200 | KPV1300 | 1210KW | 12 | 138*168 | 33.8 | Electric | 1500 | 4000*1780*2350 | 5500 |

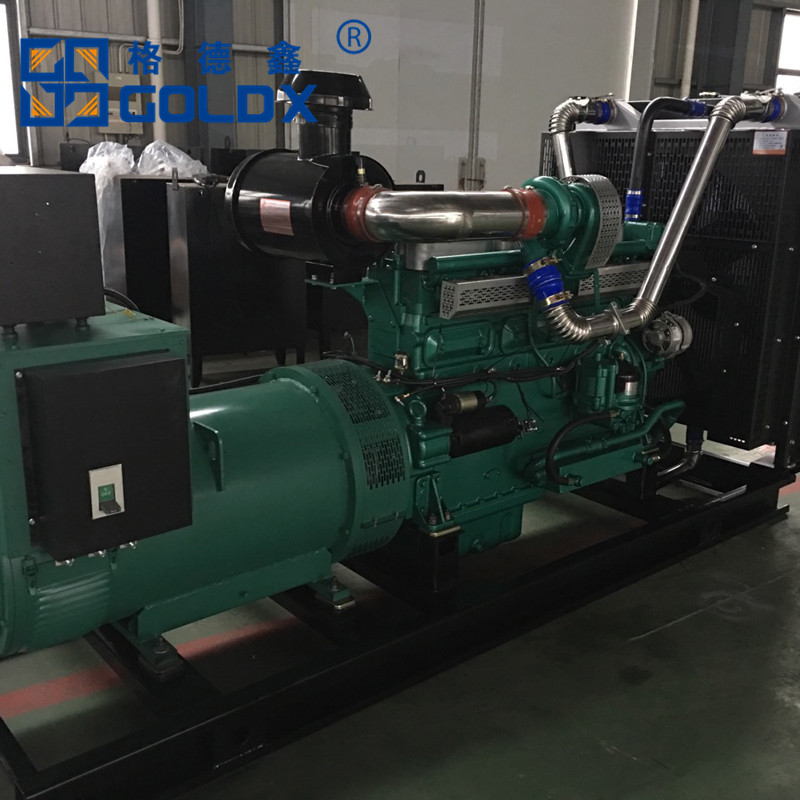

Product Details
(1) Installation is as simple as you like. Heavy concrete foundations that do not require the use of reducing bags. It only needs to be mounted on a concrete slab that can support its weight.
(2) Electrically regulated high-pressure fuel injection pump: more stable, more fuel efficient, more simple automatic adjustment of the throttle according to the size of the load, making the current and voltage stable, improving the stability of the unit operation, the throttle is more accurate, diesel combustion is efficient, eliminating the tedious manual adjustment of personnel.
(3). 5MK Thickened board spray paint surface, height is 20cm. High strength bending base frame.
(4)
(5) All copper brushless motor Power enough, high temperature resistance all copper wire, low loss, power enough The output is stable, the motor core length is long, the diameter is large Maintenance-free, eliminating conductive carbon brushes in brushed motors Low noise, running voltage is very stable, long life, low noise High precision, suitable for some high-precision equipment and electrical equipment use (6)
Packaging Details: Genaral wrap film packaging or wooden case or according to your requirements. Delivery Detail: Shipped in 10 working days after payment Warranty period: 1 year or 1000 running hours whichever comes first.
